Brand: Outai Optics

Series: Metal film mirror series

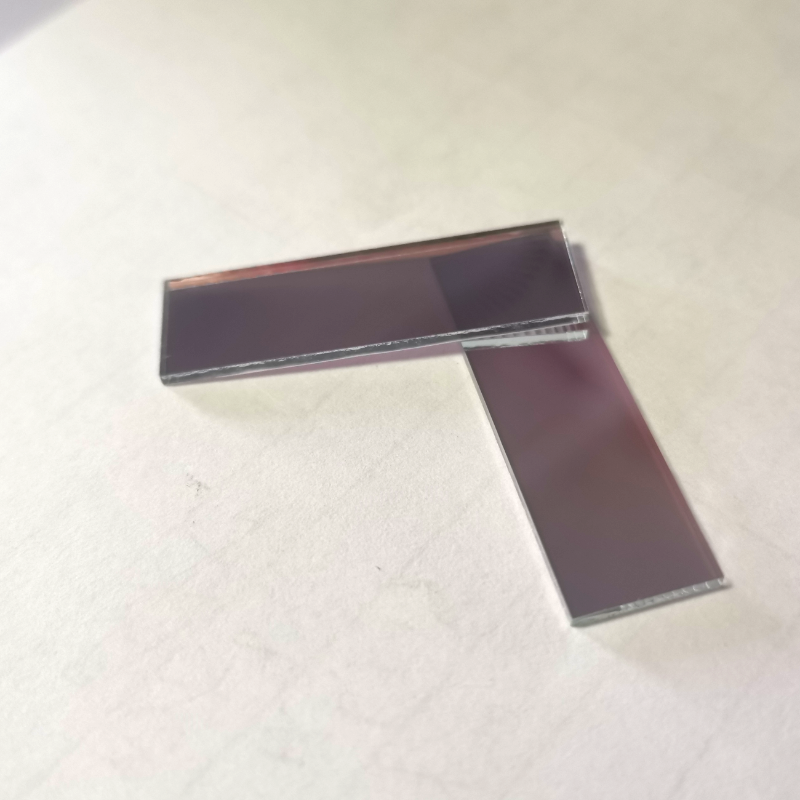

Type: Protective aluminium film mirror

Specification: Material: K9

Size: Customizable

Coating: Protective aluminum film 450nm ~ 20um, UV-enhanced aluminum film 250nm ~ 450nm (customizable)

Reflectance: 450nm ~ 2um > 90%, 2um ~ 20um > 95%, 250nm ~ 450nm > 90%

Features: Relatively uniform reflectance in a wide spectral range. Metal mirrors coated with multilayer protective coatings not only have a wide reflective band, but also have high reflectivity and high damage threshold, while avoiding oxidation or scratching of the metal coating. The average reflectance of the protective aluminum film mirror is higher than 90% in visible light, 2um infrared light and ultraviolet light, and the average reflectance is higher than 95% in 2um ~ 20um infrared light. Compared to silver mirrors, this enhanced aluminum mirror has a lower tendency to discolor when exposed to moisture.

Applications: Protective aluminum-coated metal mirrors are used in many wideband applications in the visible and ultraviolet spectral regions. Applications include laser light equipment, laser printers, bar code scanners, projectors, rear-projection TVS, digital cameras, optical analysis instruments, etc.
